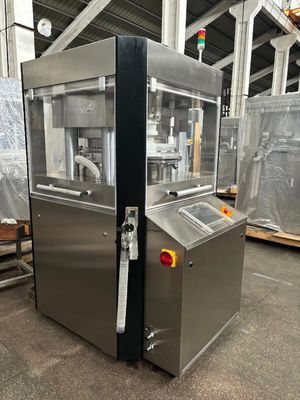

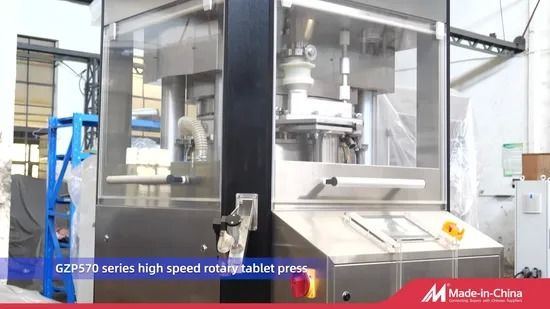

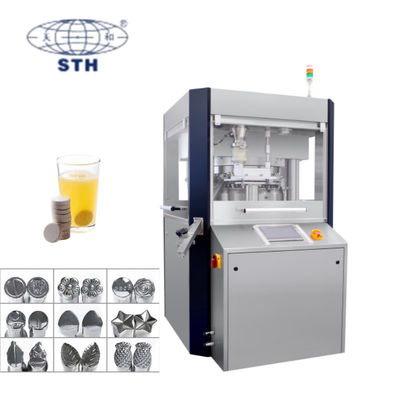

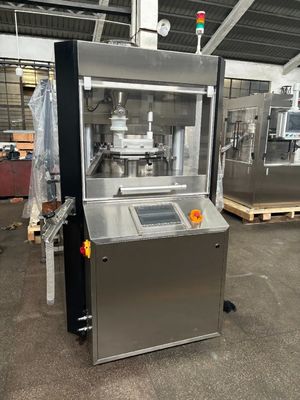

41 Stations High Speed Tablet Press with 295200 PCS/H Capacity and 11Kw Motor Power

This double-side rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, foodstuff, and electronic industries.

• Advanced Pressure System: Dual pressure forming with main and pre-pressure ensures tablet weight accuracy and hardness stability.
• High Production Capacity: 450,000 tablets/hour maximum output with 103m/min turret linear speed.
• Precision Pressure Monitoring: Pressure sensor with digital display and emergency stop protection.
• Automated Lubrication: Electric lubrication system with adjustable frequency for optimal performance.
• Intelligent Control: Programmable controller with color touch screen interface for parameter adjustment.
• Comprehensive Protection: Multiple safety features including oil level monitoring and emergency stop.
• Advanced Feeding System: Double impeller feeding with material level sensor for consistent performance.
• Premium Materials: Military-grade copper track and Japanese-cast components for durability.
• Precision Engineering: Machining center processed parts for operational stability.
• High-Strength Design: 100KN main pressure capacity for traditional Chinese medicine tablets.

Delta 10 inch Color Touch Screen

• Displays real-time working pressure, speed, and output data
• 3-level management authority with electronic signature (CFR21)
• Remote access capability
• Formula management system
• Handwheel-free operation with rich interface

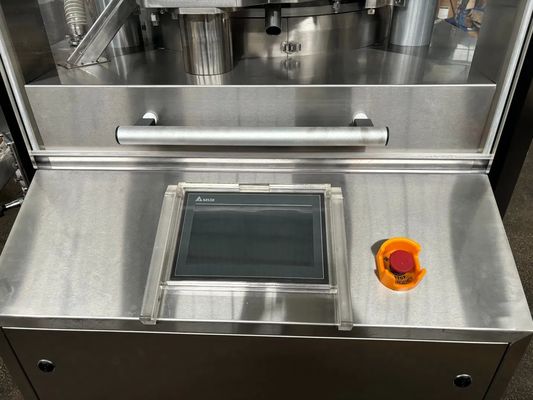

Operating Console

Handwheel-free control with automatic adjustment of main pressure, pre-pressure, and filling volume via touch screen.

Power System

• 11kw ABB main motor
• High-precision reducer for stable torque output
• Premium electrical components (Delta, Schneider)

Lubrication System

Dual lubrication with oil for punches/tracks and grease for shafts/bearings.

Turret Construction

• Three-part structure with HT300 & 2Cr13 materials
• Hardened wear-resistant surface
• Upper/lower punch dust protection
• Fully enclosed working turret

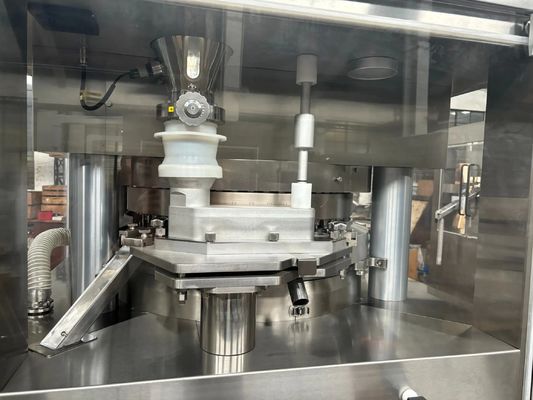

Force Feeder System

Stable direct-mounted design with double blade wheel feeding for consistent material distribution.

Special Hopper Design

Rotary valve controlled powder flow for precise material handling.

Packaging & Shipping

• Export-standard wooden packaging included
• 15-45 working days delivery time
• Multiple transport options: SEA, AIR, EXPRESS

Certifications

Company Profile

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer of pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. We offer complete in-house manufacturing from casting to assembly and provide customized solutions based on customer requirements.
